Ammo System #

All Defrag weapons, the RJ Rocket Launcher, the Sticky Bomb Launcher, and Concs can be controlled with separate ammo types.
By default players have infinite ammo.
Additionally, an ammo limit can be set that doesn’t allow the player to have more than a certain amount.

By default, the player has a limit of 200 on the maximum amount of ammo they can carry of any type.
This can be changed with the SetAmmoLimit input, where a limit of -1 means no limit.
The ammo limit does not prevent the player from carrying infinite ammo, it only applies when the player’s ammo is finite.

Pickup Entities #

In order to create an ammo pickup use momentum_pickup_ammo entity.
The key AmmoName controls the type of ammo. It takes a string which is one of the names in the table below.
The entity also takes a PickupAmmo key which controls how much ammo the player gets.

momentum_weapon_spawner entity can also give ammo on pickup, controlled by the PickupAmmo key.

Player Inputs #

You can use inputs on the player to set, add, or subtract the player’s ammo. The player can be in one of three states with ammo:

• Negative ammo - Can shoot an infinite amount of shots. This is the default.
• Positive ammo - Can shoot, each shot will take 1 ammo.
• Zero ammo - Out of ammo, cannot shoot.

Each ammo type supports two related inputs:

• SetX — Sets the ammo count directly.
• AddX — Increases/Decreases the current ammo count by a specified amount.

Examples #

• To give infinite rockets: SetRockets -1
• To add 30 plasma bolts: AddPlasma 30
• To take away 2 sticky bombs: AddStickyBombs -2

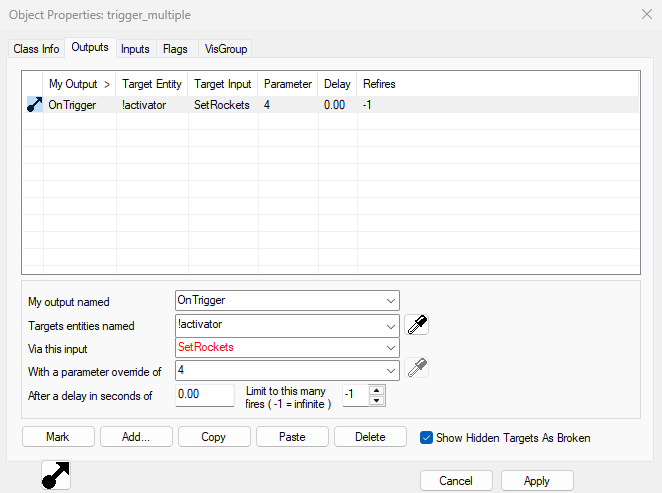

Example in the screenshot sets player’s rocket count to 4

Trigger Placement #

In RJ and SJ, proper trigger placement is required ensure the player starts the jump with the right amount of ammo.
Try to place triggers such that:

• It is impossible to miss or avoid any ammo triggers
• The player’s ammo is instantly refilled upon failing a jump
• The player’s ammo is refilled if they fire but don’t leave the start of the jump
• The player cannot get stuck somewhere with zero ammo and no access to an ammo trigger

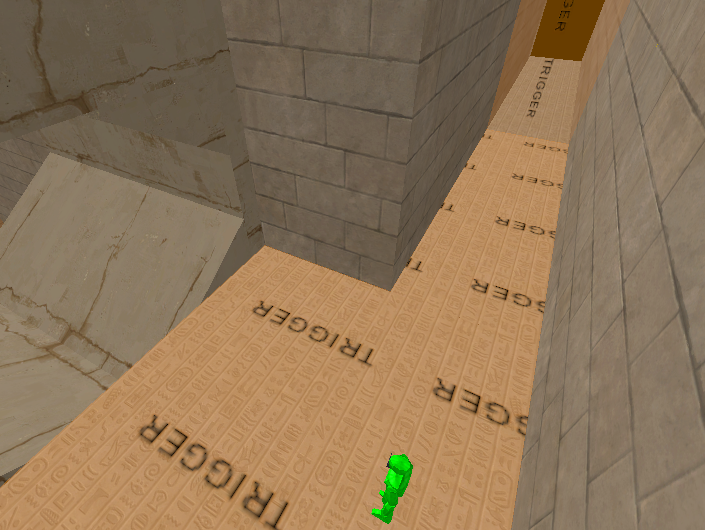

Here is an example trigger setup for a jump:

The vertical trigger in the hallway is an OnStartTouch output, and assures the player will be set to 4 rockets even if they skip over the floor trigger.
The flat trigger on the floor is 1 hammer unit tall and uses OnTrigger instead, and sets the player’s rockets to 4 as long as they are on the ground.

Remember to add an ammo trigger to the map’s start zone so the player’s ammo state is consistent at the start of each run!

Weapon System #

The weapon system allows mappers to give and remove a players weapons via entity logic.
Weapons can be given to players in two ways:

Weapon Spawner Entity #

The momentum_weapon_spawner entity takes a weapon entity name in the WeaponName key.
The entity also has a ResetTime key, which is the amount of time in seconds before a weapon can be picked up again.
If this value is negative, then the spawner will only give a weapon once.

Inputs #

Weapons can be enabled or disabled using the following inputs:

GiveWeapon (weapon name)
RemoveWeapon (weapon name)

Weapon Names #

Gamemode Specific #

Miscellaneous #
